Are you looking to install or upgrade your thermostat but worried about making a mistake? Thermostat wiring can be tricky, especially if you’re not familiar with the intricacies of HVAC systems. As the owner of LC Heating and Air Conditioning in Hollywood, I’m here to help you navigate through some of the most common thermostat wiring mistakes and ensure your home stays comfortable year-round. Whether you’re a stay-at-home mom juggling multiple tasks or a small business owner seeking reliable information, this guide is for you. Tackling thermostat wiring on your own can be daunting, but with the right guidance, you can avoid pitfalls and ensure your system runs smoothly.

Understanding the importance of correct thermostat wiring is crucial, as improper connections can lead to inefficient heating and cooling, increased energy bills, or even damage to your HVAC system. By familiarizing yourself with potential errors and learning how to avoid them, you can save yourself time and stress. Let’s delve into the basics before we explore the common mistakes to avoid during thermostat installation.

Understanding Thermostat Wiring

Before diving into the common mistakes, let’s start with the basics. Thermostat wiring connects your thermostat to the heating and cooling systems in your home. It’s crucial to understand the color-coded wires and their functions to avoid any mishaps. Here’s a quick breakdown:

• Red wire (R): Power from the transformer
• White wire (W): Heat
• Yellow wire (Y): Cooling
• Green wire (G): Fan
• Common wire (C): Provides continuous power to the thermostat

These color-coded wires serve as the nervous system of your HVAC setup, each playing a vital role in ensuring your home maintains a consistent and comfortable temperature. Misunderstanding their functions or misconnecting them can lead to a myriad of issues, ranging from minor inconveniences to significant system malfunctions. Knowing each wire’s purpose is the first step in preventing wiring errors.

It’s also essential to recognize that different thermostat models may have variations in wiring configurations. Always consult the specific instructions for your model and don’t assume all thermostats follow the same wiring pattern. Being aware of these details helps prevent the common mistakes that many homeowners encounter.

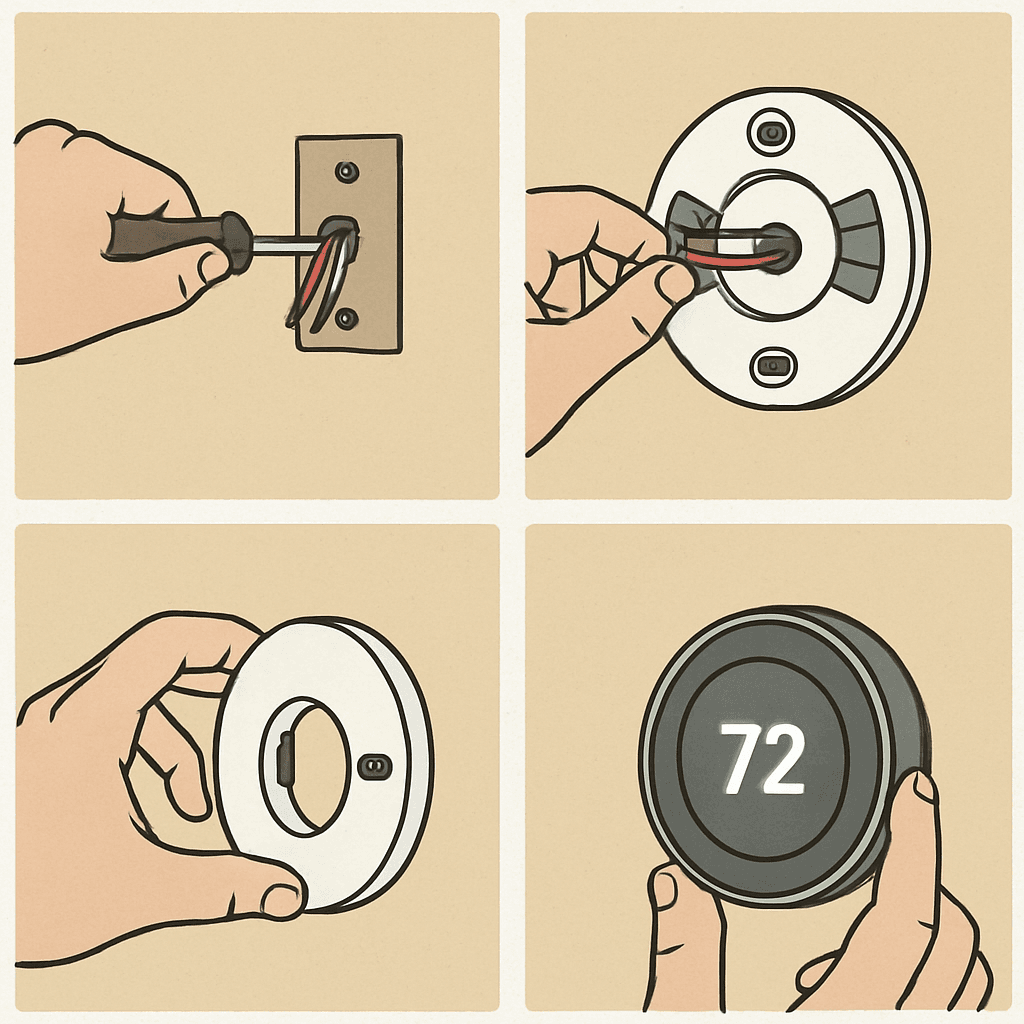

Mistake #1: Ignoring the Wiring Diagram

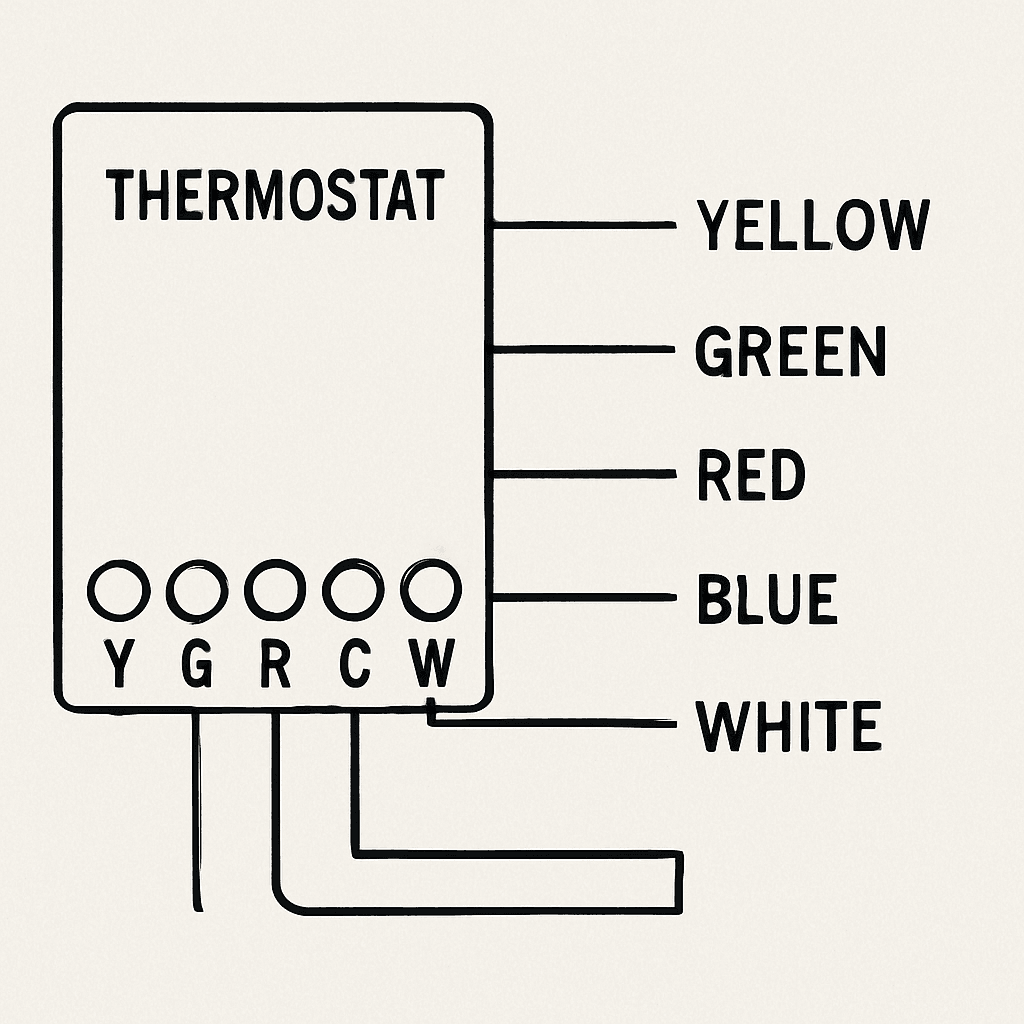

One of the most common mistakes is ignoring the thermostat wiring diagram. Each thermostat model, whether a Honeywell or another brand, comes with its specific wiring requirements. Neglecting the diagram can lead to incorrect connections, which may cause your system to malfunction.

Taking the time to understand the wiring diagram is like reading a map before embarking on a journey; it ensures you reach your destination without unnecessary detours. The diagram outlines the correct connections, helping you avoid common pitfalls that can disrupt your HVAC system’s performance. It’s not just a suggestion—it’s a critical component of the installation process.

Tip: Always Refer to the Wiring Diagram

When installing or replacing your thermostat, always refer to the provided wiring diagram. It serves as your roadmap, ensuring each wire is correctly connected to its corresponding terminal. If you’re unsure, consult the manufacturer’s website or contact a professional like us at LC Heating and Air Conditioning.

In addition to following the diagram, consider double-checking your work against online resources or forums dedicated to DIY HVAC projects. These platforms can offer insights and troubleshooting tips from others who have successfully completed similar tasks. Remember, a few extra minutes spent verifying connections can save you hours of frustration later.

Mistake #2: Misidentifying Wires

Misidentifying wires is another frequent error. Using the wrong wire for a connection can lead to system failures or even damage. This mistake often occurs when wires are not clearly labeled or when installers rush through the process without verifying each wire’s function.

The consequences of misidentifying wires can be significant. For instance, connecting the wrong wires can lead to your heating system activating when you intend to cool your home, or worse, cause electrical issues that may require costly repairs. It’s crucial to spend time ensuring each wire’s identity is clearly understood before proceeding with installation.

Tip: Label and Identify Wires

Before disconnecting any wires, label them with tape. This simple step can save you from confusion later. If you’re dealing with a wireless thermostat or a smart thermostat, follow the instructions carefully, as these systems can have additional wiring requirements.

For those who are visually inclined, taking photos of the existing wiring setup before disconnecting any wires can serve as a valuable reference. This visual backup can be particularly helpful if you need to retrace your steps or confirm that wires are reconnected to their original positions.

Mistake #3: Overlooking the Common Wire (C-Wire)

The common wire, or C-wire, is often overlooked but plays a critical role in powering smart thermostats. Without it, your thermostat may not function correctly or at all. This oversight is particularly common in older homes where the existing wiring may not include a C-wire.

A smart thermostat relies on a continuous power supply to maintain its advanced features, such as Wi-Fi connectivity and programming capabilities. Without the C-wire, these functionalities might be compromised, leading to a less efficient system and a frustrating user experience. It’s essential to verify the presence of a C-wire during the initial assessment of your current setup.

Tip: Ensure the Presence of a C-Wire

If you’re installing a smart thermostat, check for the presence of a C-wire. If your system lacks one, you may need to run a new wire or use a C-wire adapter. For assistance, feel free to reach out to us at LC Heating and Air Conditioning.

In some cases, hiring a professional to assess your system and install a C-wire can be a wise investment, ensuring your smart thermostat operates at its full potential. Professionals can also recommend suitable adapters or alternative solutions if running a new wire isn’t feasible in your home.

Mistake #4: Incorrectly Hooking Up the Thermostat to the Furnace

Incorrectly connecting the thermostat to the furnace is a mistake that can disrupt your heating system. This usually occurs when wires are connected to the wrong terminals. Such errors can cause the furnace to operate inefficiently, increasing your energy bills and reducing overall comfort.

Mistakes in connecting the thermostat to the furnace often stem from assumptions or haste during installation. It’s vital to approach this step methodically, double-checking each connection against the thermostat’s installation manual. A careful approach ensures that your system operates as intended.

Tip: Double-Check Connections

Before finalizing your installation, double-check all connections. Ensure that each wire is attached to the correct terminal on the furnace and thermostat. This is crucial for maintaining efficient and effective heating.

Consider enlisting a second pair of eyes to review your work. Sometimes, a fresh perspective can catch errors you might overlook. If any doubt remains, consulting a professional can provide peace of mind and ensure your system’s longevity and efficiency.

Mistake #5: Skipping the Testing Phase

Many people skip the testing phase after installation, assuming everything is correctly set up. However, this can lead to operational issues later on. Testing ensures that all components are functioning as expected and can help identify any immediate issues that need addressing.

The testing phase is your opportunity to verify that your hard work has paid off. By methodically checking each function, from heating to cooling, you can confirm that your system operates smoothly. Skipping this step might leave you unaware of potential problems that could escalate over time.

Tip: Test Your Thermostat

After wiring your thermostat, test the system. Turn on the heating and cooling to ensure they respond correctly. If you notice any issues, revisit your wiring or consult a professional.

Documenting the outcomes of your tests can be helpful, particularly if you need to seek professional assistance later. Having a clear record of what works and what doesn’t can expedite troubleshooting and lead to quicker resolutions.

When to Call a Professional

While DIY projects can be rewarding, thermostat wiring is not always straightforward. If you’re uncomfortable or unsure at any step, it’s wise to call in a professional. At LC Heating and Air Conditioning, we offer reliable and professional thermostat installation services. Contact us at (818) 858-7080 to schedule a service or get expert advice.

Attempting to resolve complex wiring issues without adequate knowledge can lead to further complications or even safety hazards. Professionals possess the expertise and experience to handle intricate wiring tasks, ensuring your system is safe and efficient. They can also provide personalized advice tailored to your specific setup and needs.

Conclusion: Thermostat Wiring Mistakes

Avoiding common thermostat wiring mistakes can save you time, money, and frustration. By following the tips outlined above, you can ensure a smooth installation process. Remember, if you ever find yourself stuck or prefer professional help, LC Heating and Air Conditioning is here to serve the Los Angeles metropolitan area with trust, quality, and customer satisfaction at the forefront. Your comfort is our priority.

Thank you for trusting us with your HVAC needs. If you have any questions or require assistance, don’t hesitate to reach out. We’re just a phone call away at (818) 858-7080. Taking the time to ensure proper installation not only enhances your home’s comfort but also contributes to the longevity and efficiency of your HVAC system.
